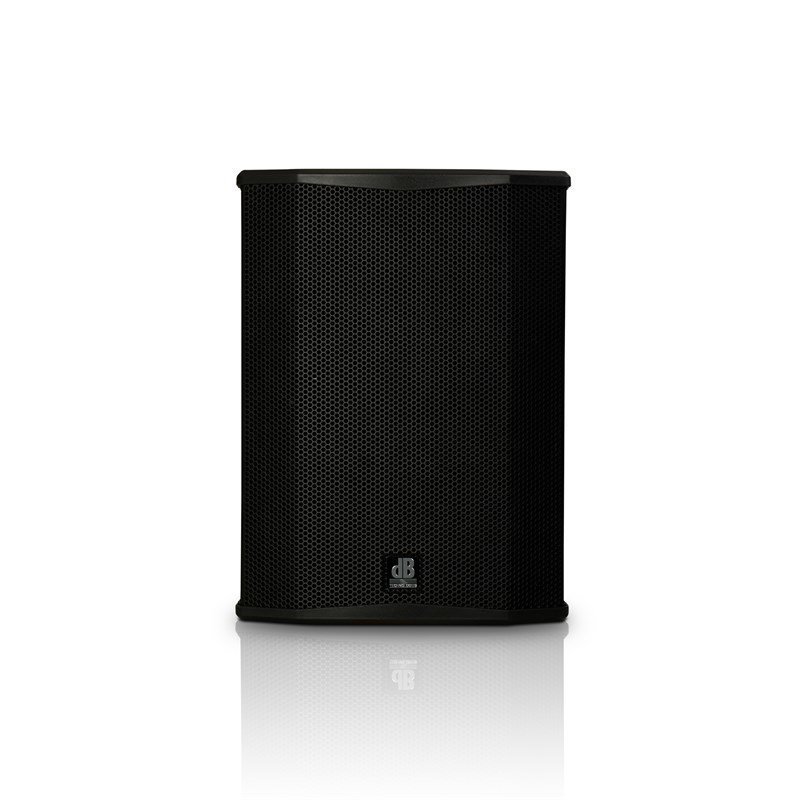

SUB 18H AKTIF HOPARLOR

dB Technologies Sub 18H 18-inch 2000W Peak Aktif Subwoofer

Technical Data

Speaker TypeSemi Horn-loaded Active Subwoofer

Acoustical data

Frequency Response [-10dB]28 - 150 Hz

Max SPL134 dB

Directivityomnidirectional

LF18"

Voice Coil LF4"

Amplifier

Amp TechnologyDigipro G3™

Amp ClassClass D

Power PRG1500 W

Peak Power2000 W

Power supply1000 W SMPS with PSU Auto-range (110V~ and 220V~)

Processor

ControllerDSP 56 bit

AD/DA Coverters24 bit/48 kHz

LimiterDual Active, RMS/Peak, Thermal

Crossover Frequency90, 120 Hz

LF-Xover out slope24 dB/Octave

ControlsX-Over frequency selection, Delay switch up to 4.5ms, Phase inversion switch, Outputs mode switch (Link/X-over), Mini-USB type "B” port (service data)

Input

Signal Input2x XLR

Signal Output2x XLR X-Over Out/Link Out

Mechanics

HousingPlywood, Black PVC cover

Handles 2 (1xside)

Width524 mm (20.6 in)

Height711 mm (28 in)

Depth695 mm (27.4 in)

Weight41.4 kg (91.3 lbs)
